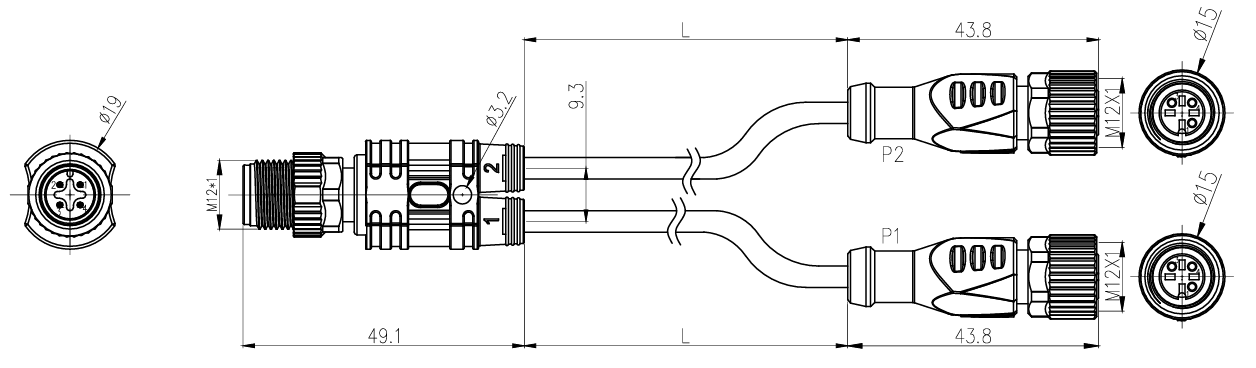

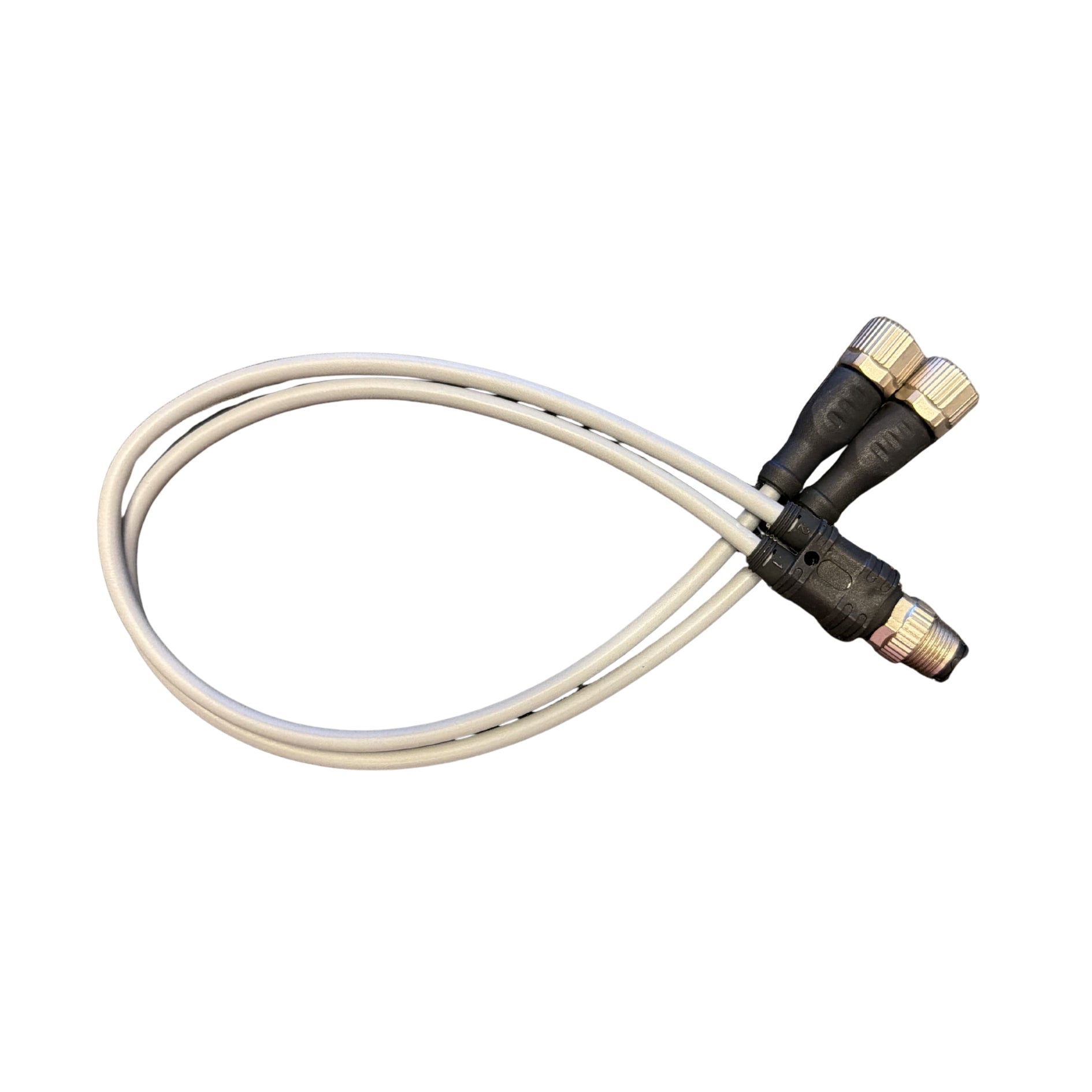

M12Y type, 4-pin male straight/female straight 3-pin 2M12, gray PUR cable L-meter
SCAC-M12Y-MS-4P-0.3-M12-FS-PUR-GY
940701-223-0030
order number: 25121818
| Cable color | Grey |
| Maximum supply voltage | 250V AC/DC |
| Temperature range | -25...+80 °C |
| LED indication | None |

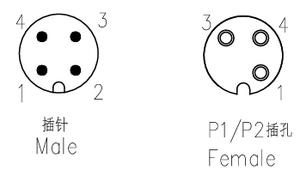

| Interface type | M12 pin/2×M12 jack |
| Extreme number | 4/3 |
| Number of wires× cross-sectional area of wires | 3×0.34 mm² |
| Cable material: | PUR |
| Maximum operating current | 4A |
| Protection type (EN IEC 60529) | IP67 |
| Precast type | Precast at both ends |
| cable outlet | straight out/straight out |
| Coding | A |
