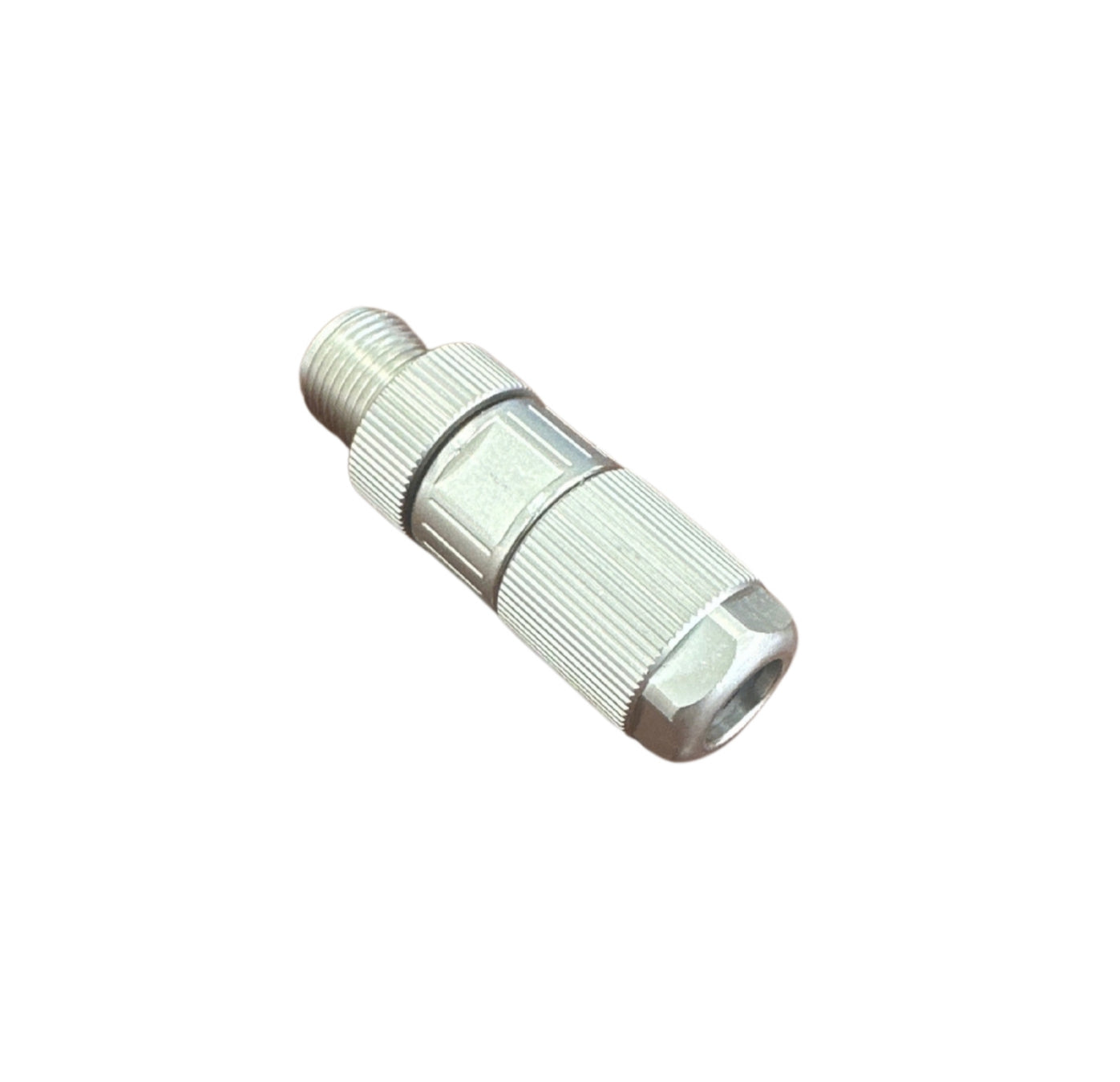

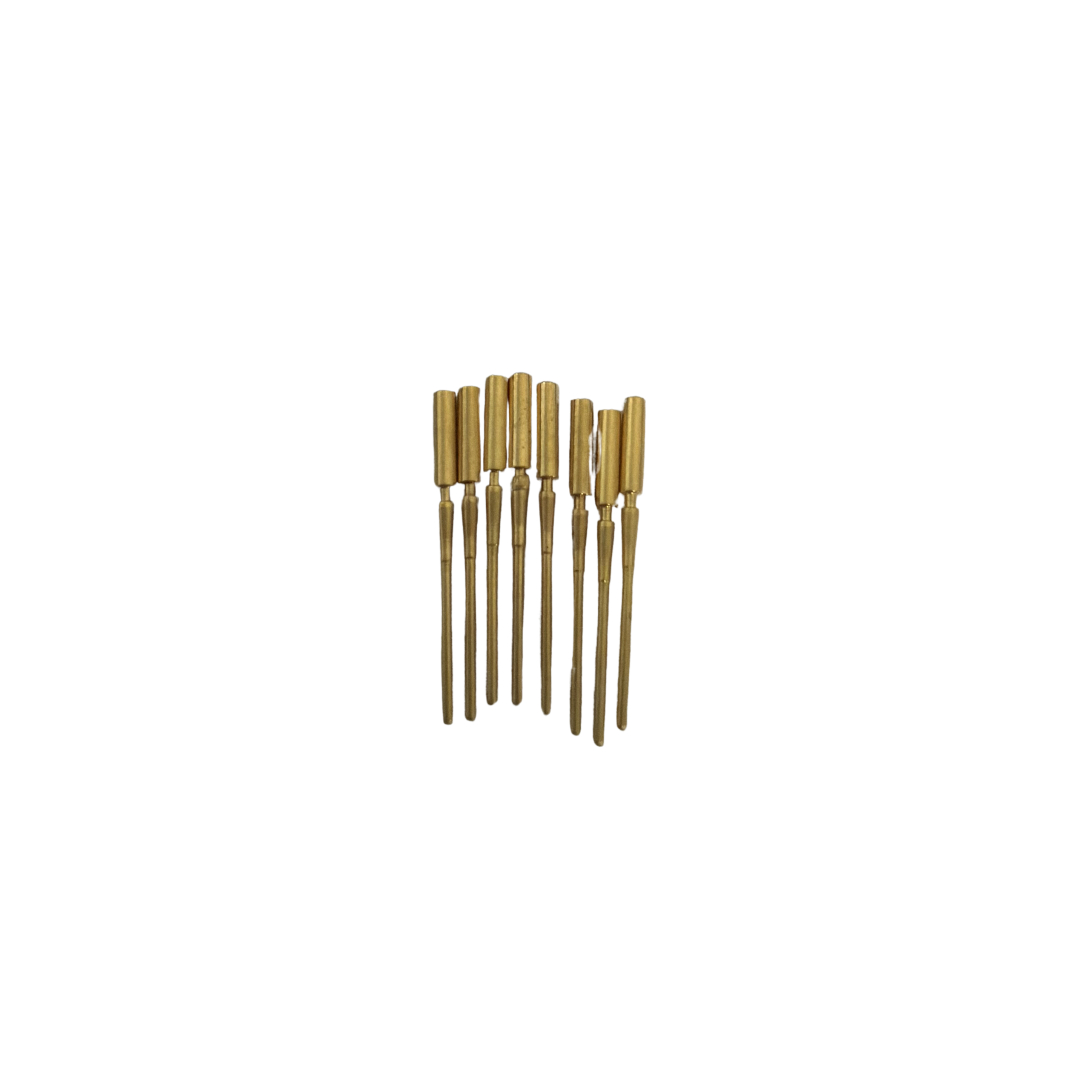

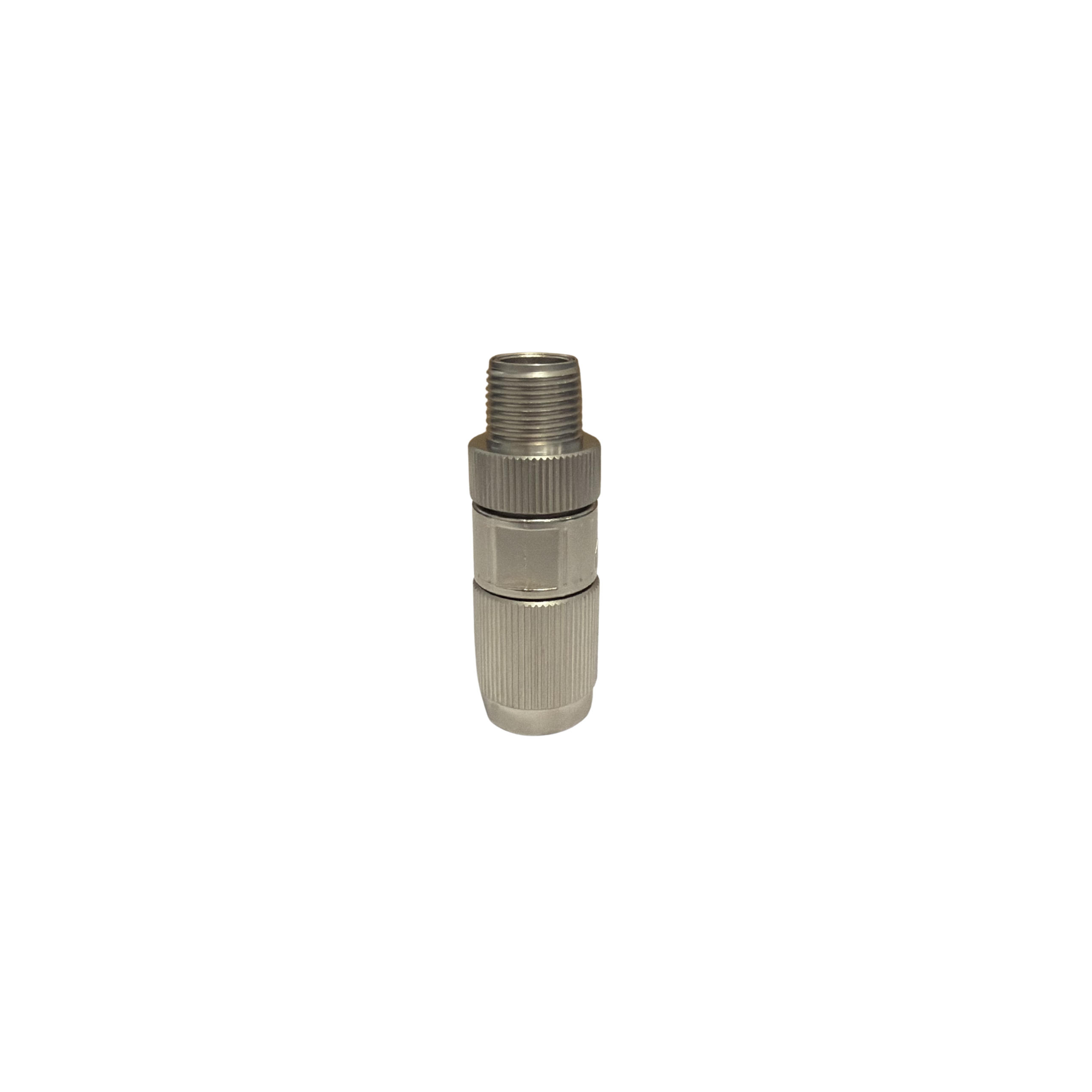

M12 X-buckle 8-pin, male, straight out (with crimp pin)
Fast Delivery
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guarantee Safe Checkout
M12 X-buckle 8-pin, male, straight out (with crimp pin)
M12-8P-MS-X-Coded
Order code: 917941
M12 X-buckle 8-pin, male, straight out (with crimp pin)
| Number of pins | 8 |
| Rubber ring type | Single hole |
| Cable outlet diameter | 4-6mm |
| Current rating | max.0.5A |
| Ingress protection | IP67 jack pins fit tightened |
| Wiring | Cold crimp CAT6A |
| type | Pins |
| Cable outlet | Straight out |
| shield | Yes |
| encode | X |
| Nut material | metal |
| Housing material | Copper-zinc alloy with nickel plated surface |
| Crimping range | 0.34mm2 |
| Rated voltage | 50V AC/60V DC |
| Temperature range | -40-+85° C |
