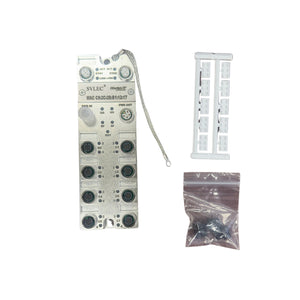

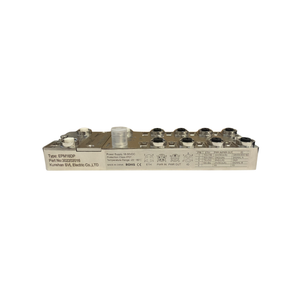

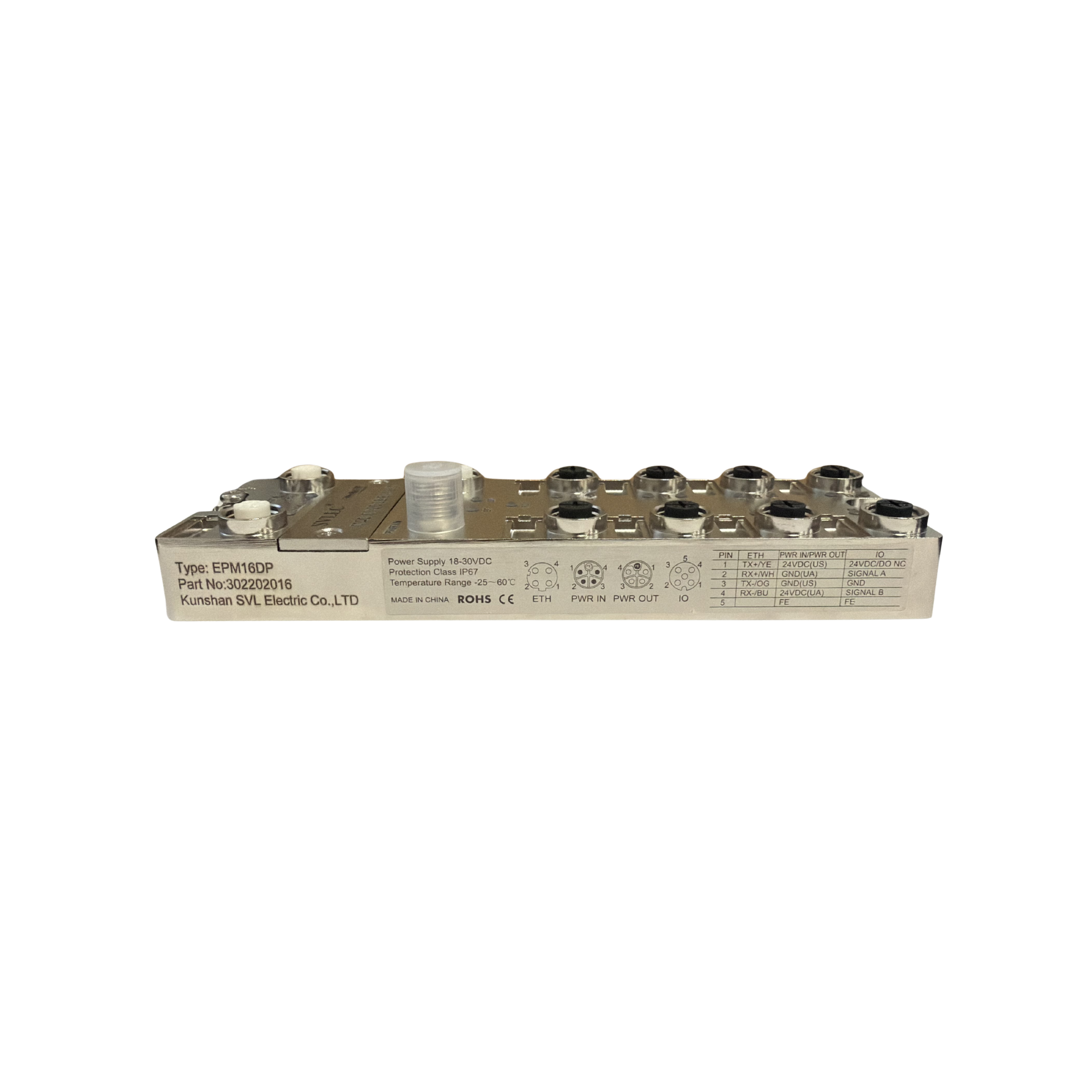

EPM16DP
Order number: 302202016

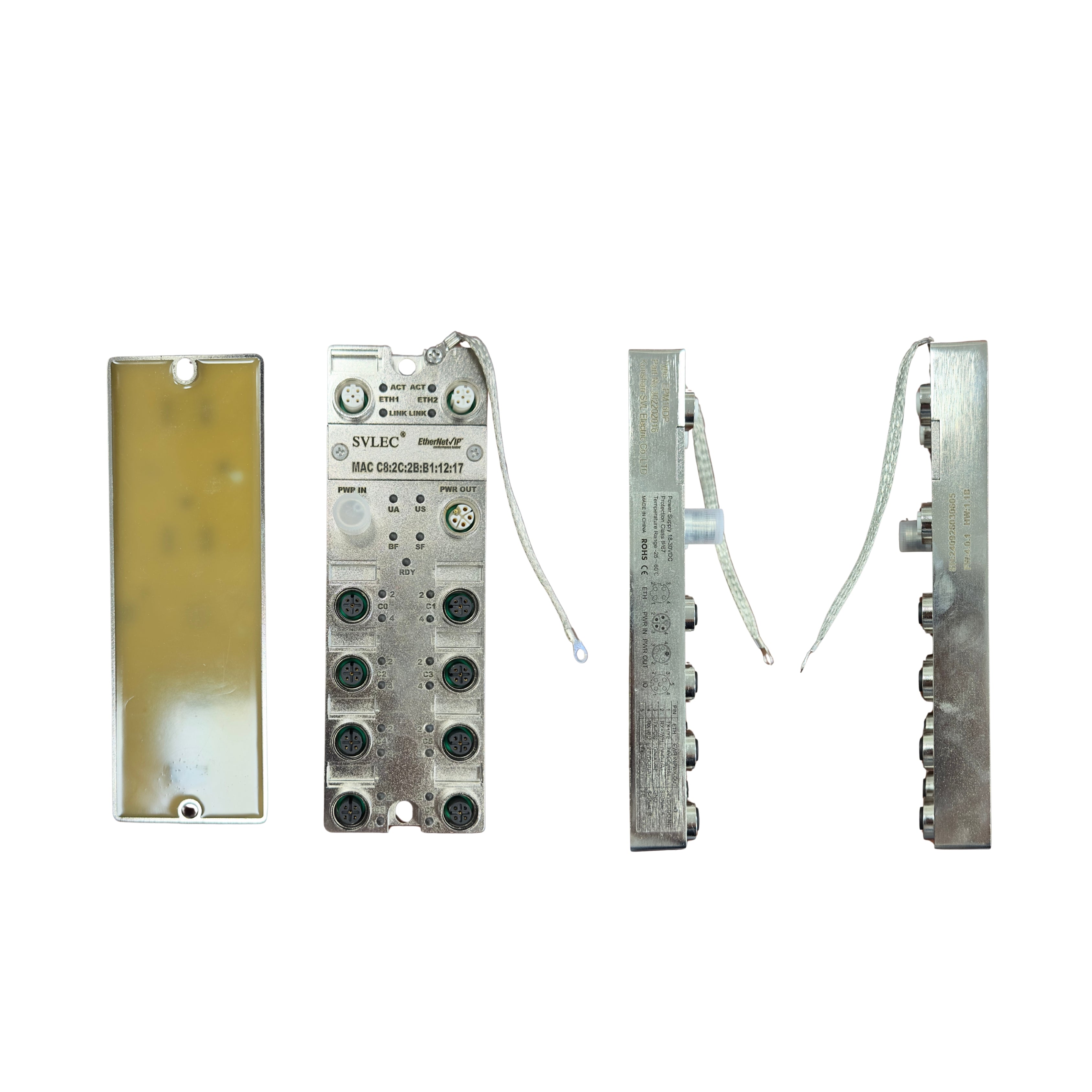

Ethernet/IP remote IO configurable module, zinc alloy die-cast housing
MAC C8: 2C: 2B: B1: 12: 17

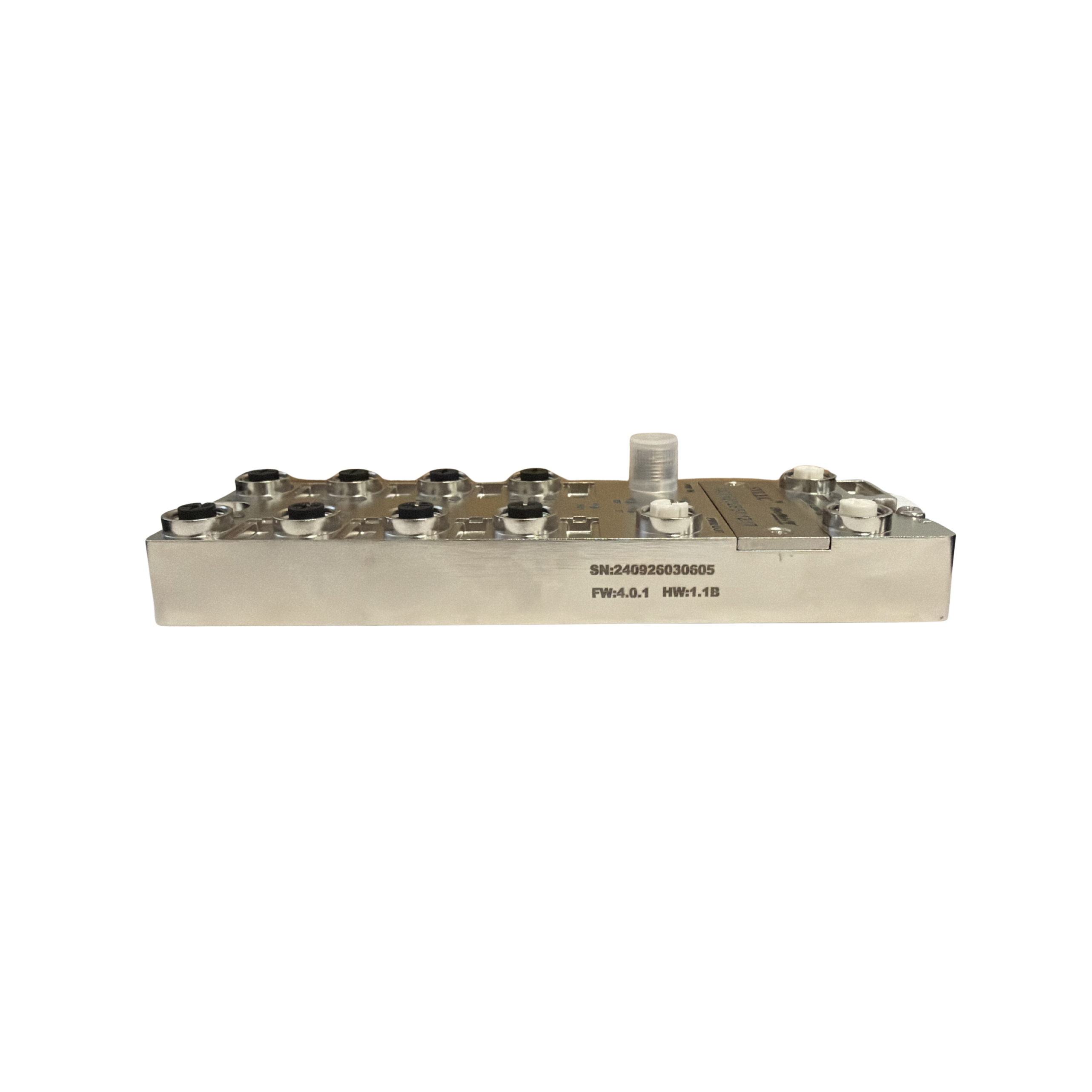

SN: 240926030605
| Actuator outputs current | 500mA |
| Power indicator light | UA (red, green) US (red, green) |
| Connection | M12, A Code, female head |
| Input type | PNP |
| Number of I/O ports | 8 |
| Function indicator light | SF/BF/RDY |
| Network interface | M12, D-code, female |
| Actuator output point fault diagnosis | Support |
| Agreement | EtherNet IP |
| Power connector | M12, L-Code, 5 pins, max 16A |
| Protection rating | IP67 |
| Output type | PNP |
| Port status indicator light | Red, green |
| Shell material | Zinc alloy |
| The sensor supplies the current to the power | 500mA |
| Sensor load open-circuit detection | Support |
| Sensor load short circuit detection | Support |
