EPM16DIX
Order number: 104305016

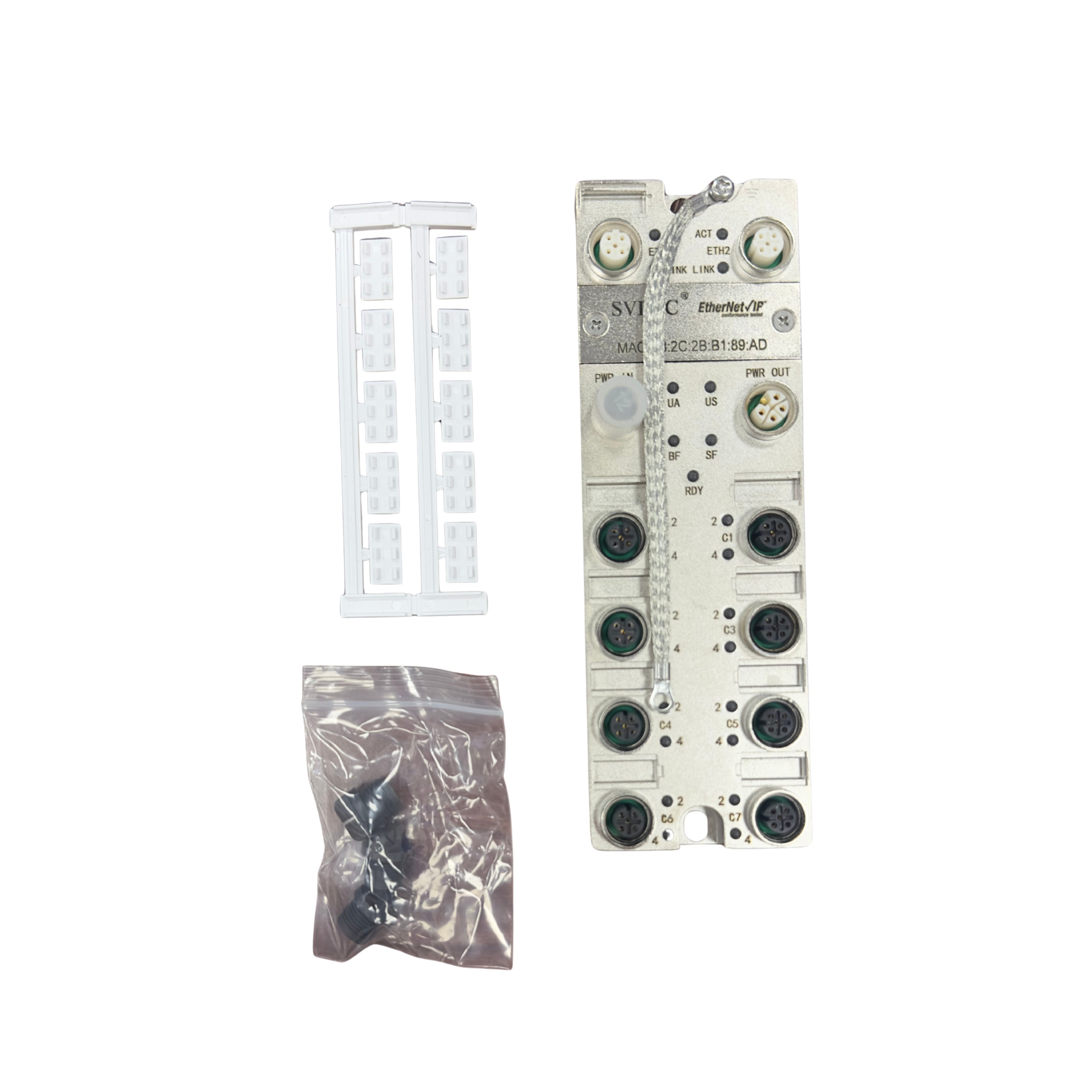

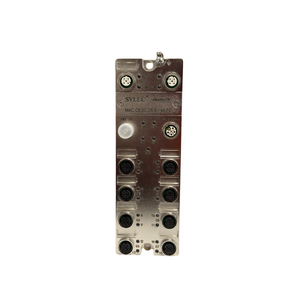

Ethernet/IP remote IO configurable module, zinc alloy die-cast housing
MAC: C8:2C:2B:B1:89:AD
SN: 250825037527
| Actuator outputs current | 500mA |
| Power indicator light | UA (red, green) US (red, green) |
| Connection | M12, A Code, female head |
| Input type | PNP/NPN |
| Number of I/O ports | 8 |
| Function indicator light | SF/BF/RDY |
| Network interface | M12, D-code, female |
| Actuator output point fault diagnosis | Support |
| Agreement | EtherNet IP |
| Power connector | M12, L-Code, 5 pins, max 16A |
| Protection rating | IP67 |
| Output type | PNP/NPN |
| Port status indicator light | Red, green |
| Shell material | Zinc alloy |
| The sensor supplies the current to the power | 500mA |
| Sensor load open-circuit detection | Support |
| Sensor load short circuit detection | Support |
