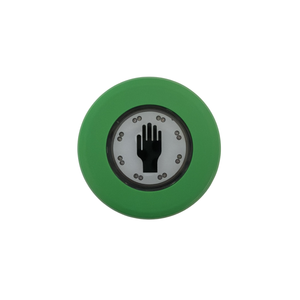

GLZD9 Capacitive Touch Switch
GLZD9-A0-0-N-A-GN/RD
ORDER NUMBER: 885006
| Load current | Max. 400 mA |
| LED1 | 8 green LEDs |
| Output signal | dynamic |
| Ring cover color | Green |
| Voltage drop | max.3V，400mA |
| Current consumption | max.30mA ,24VDC |
| LED2 | 8 red LEDs |
| Wiring method | M8 4Pin |
| LED color | LED1 green /LED2 red |
| Short-circuit protection | Short circuit, overload protection |
| output | PNP-NO (NPN-NO optional) |
| Reverse polarity protection | Protect all lines |
| Protection level | (IP): Front-end IP69K |
| Type of work | Capacitive type |
| Output method | NPN is always open |
| Pattern identification | touch |
| Supply voltage | DC 24V DC (16.8…32V) |
| Operating temperature | -30 … +70° C |
