DK1208DP
Order number: 302001006

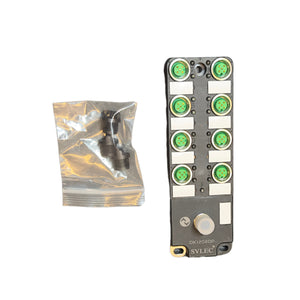

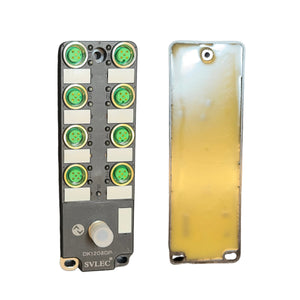

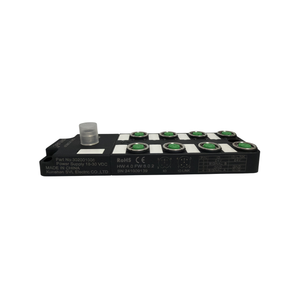

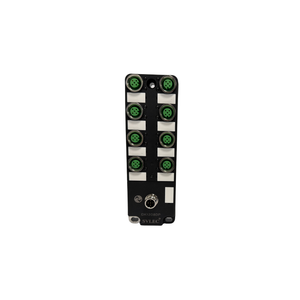

IO-Link M12 DIGITAL QUANTITY SLAVE MODULE
| Type | PNP |
| Actuator power supply method | IO-Link port PIN2 |
| Connect the solenoid valve plate | No |
| Sensor power supply | 500 mA |
| IO-Link connection cable | 4 cores |
| Number of I/O ports | 8 |
| System and sensor power supply methods | IO-Link port is 24V |
| Scalable | No |
| Actuator power supply | 500 mA |
| Total current UT | 2.6 A |
| lO-Link process data bytes | 2 inputs + 2 outputs |
| Protection rating | IP 67 (when connected correctly) |
| IO-Link port type | CLASS A |
| Shell material | PA |
