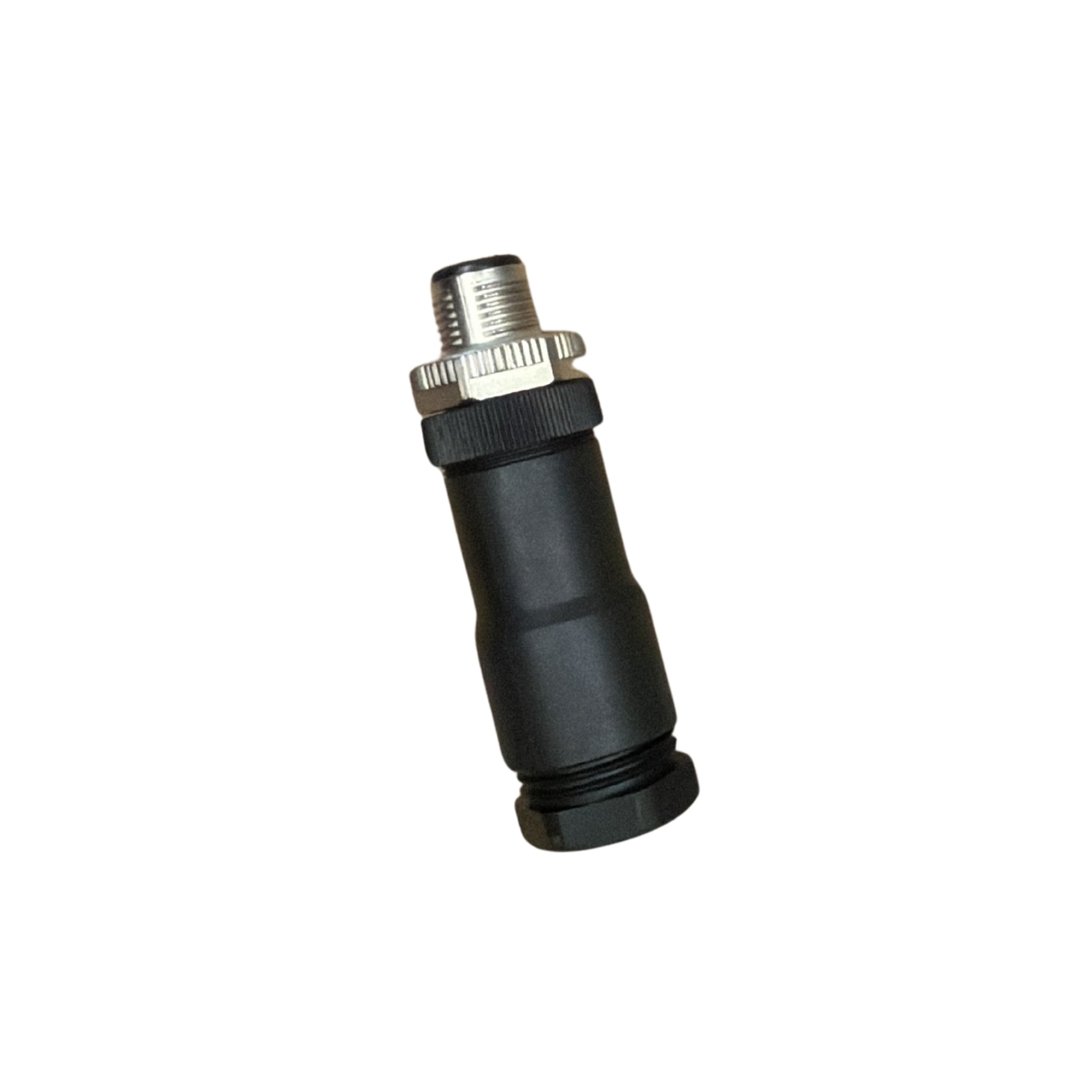

L-Code of the power interface Connector
912743
M12L-MS-5P-L-coded
ORDER NUMBER: 241210101
| Temperature range | -40…+85°C |
| Type | M12 male |
| Coding | L |
| crimping method | Screw crimping |
| Rated current | max. 12 A |
| Crimping range | max. 1.5mm2 |
| Protection level | IP65 |
| Cable outlet diameter | 5-10mm |
| Extreme number | 5 |
| cable outlet | Go straight out |
| Shielding | None |
| Shell material | Flame retardant plastic |
| Rated voltage | 63V AC/DC |
