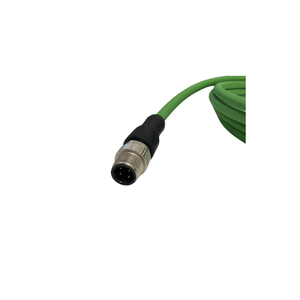

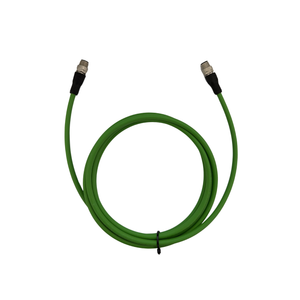

M12, 4 pins, D buckle male straight/male straight M8, 4 pins, green shield PUR high flex energy chain cable length 3 meters
Fast Delivery
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guarantee Safe Checkout
M12, 4 pins, D buckle male straight/male straight M8, 4 pins, green shield PUR high flex energy chain cable length 3 meters
M12, 4 pins, D buckle male straight/male straight M8, 4 pins, green shield PUR high flex energy chain cable length 3 meters
SCAC-M12D-MS-4P-L-M8-4P-MS-PUR-GN-SH
Order code: 944901-796-L
| Number of wires x cross-sectional area of wires | 2x2x22AWG |
| Rated current | max.2A |
| LED indication | None |
| Cable type | Precast at both ends |
| Coding | A/D |
| Cable material: | PUR energy chain installation |
| Cable color | Green |
| Rated voltage | 50V AC/60V DC |
| Protection level | IP67 |
| Shielding | Yes |
| Craftsmanship | Coated type |
| Superclass level | CAT.5e |
| Type | M8 male/12 male |
| cable outlet | straight out/straight out |
| Extreme number | 4 |
| Temperature range | -25-80℃ |
