SCAC-M12-MS-5P-PG9-LD-A-CODED
Order number: 912761

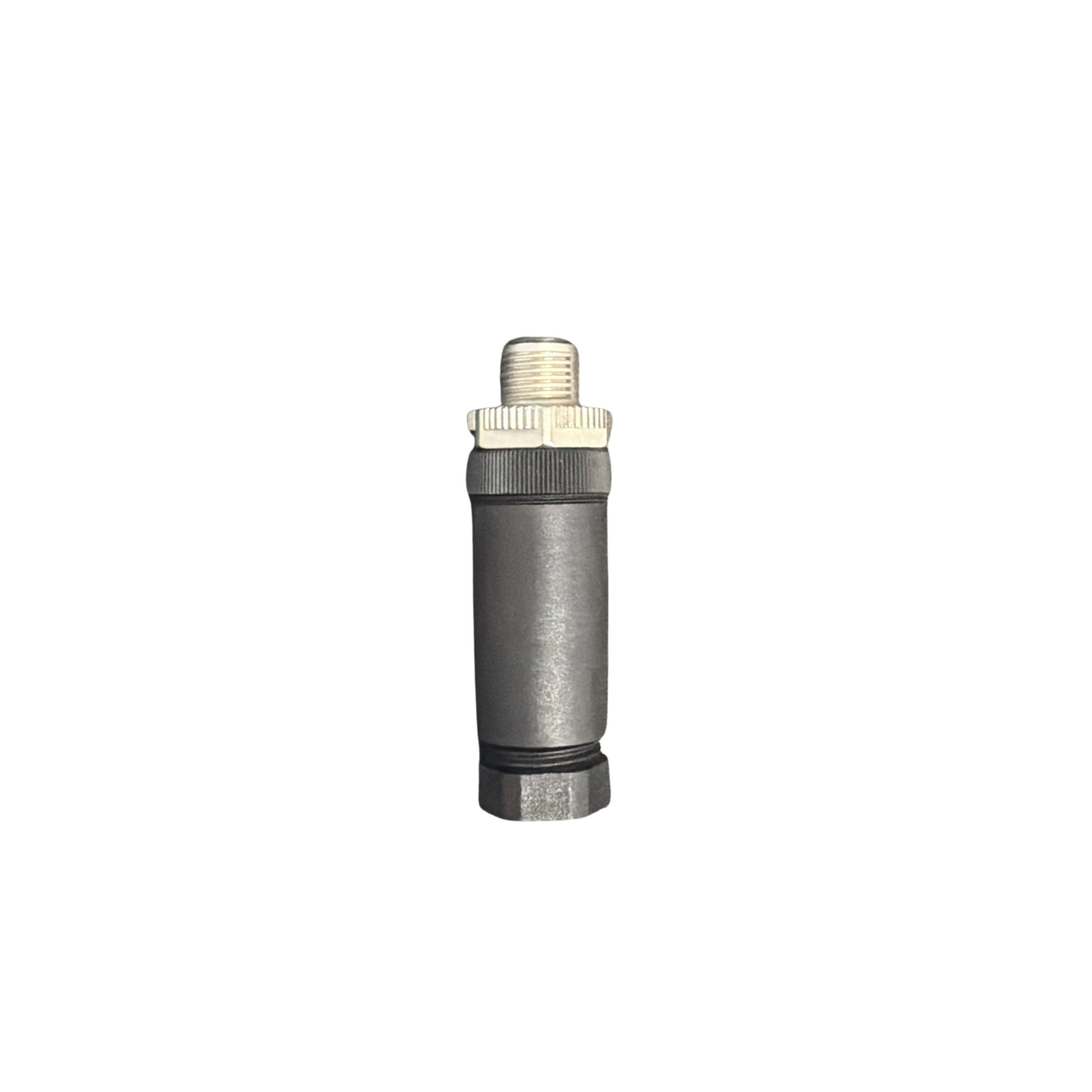

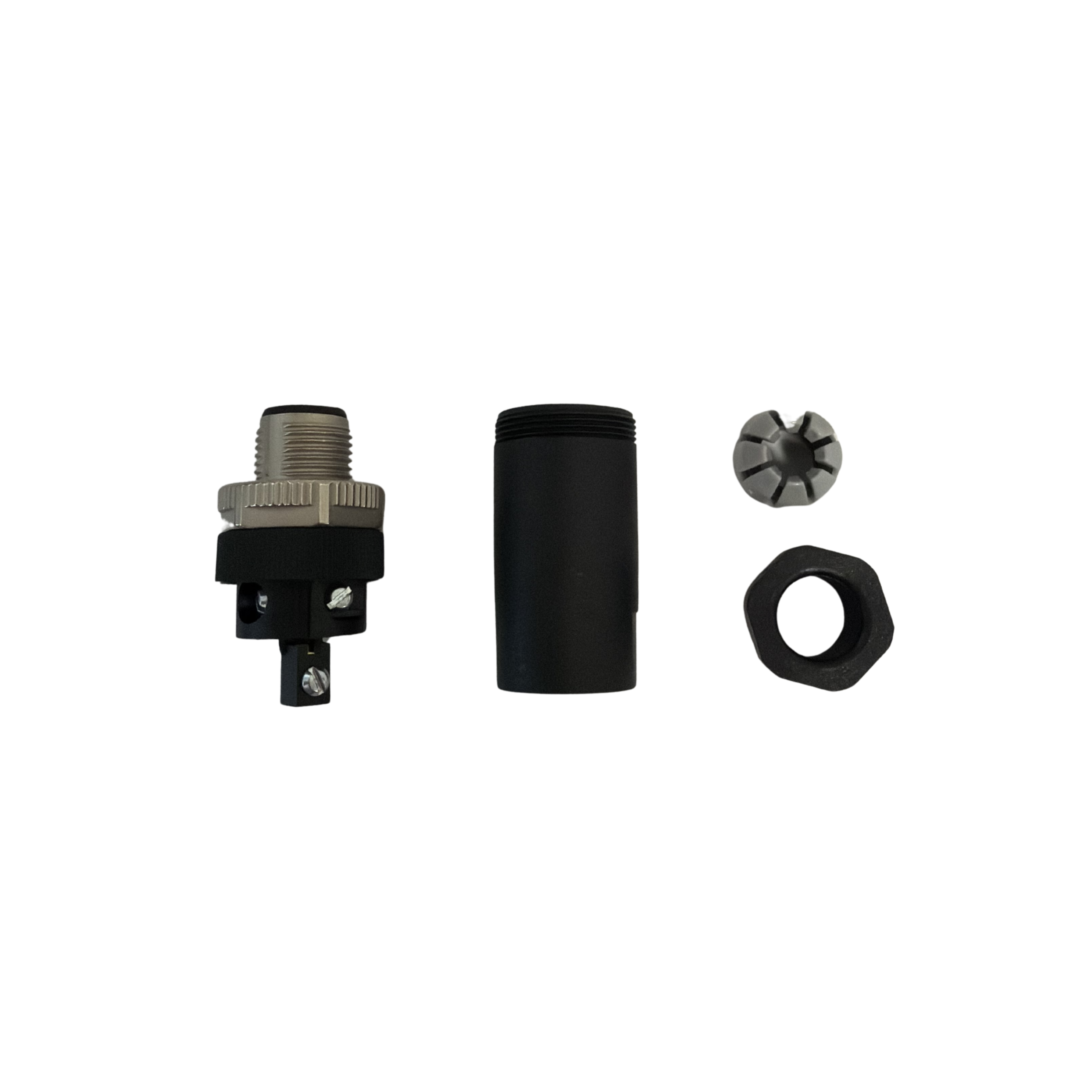

M12, A-thread, 5-pin straight-line connector, PG9, screw crimp
| The extreme number | 5 |
| Types of rubber rings | Single-hole |
| Cable outlet diameter | 6…8mm |
| Rated current | max.4A |
| Protection rating | Tighten the IP67 jack pin with the coordinated pin |
| Wiring method | Screw crimping |
| Type | Insert pins |
| Cable outage | and went straight out |
| Shielding | None |
| Coding | A |
| Nut material | Metal |
| Shell material | Flame-retardant plastics |
| Boundary range | 0.75mm2 |
| Rated voltage | 60V AC/DC |
| Temperature range | -40...+85° C |
