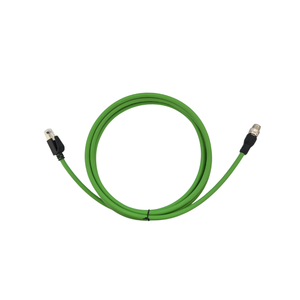

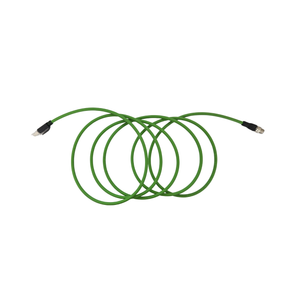

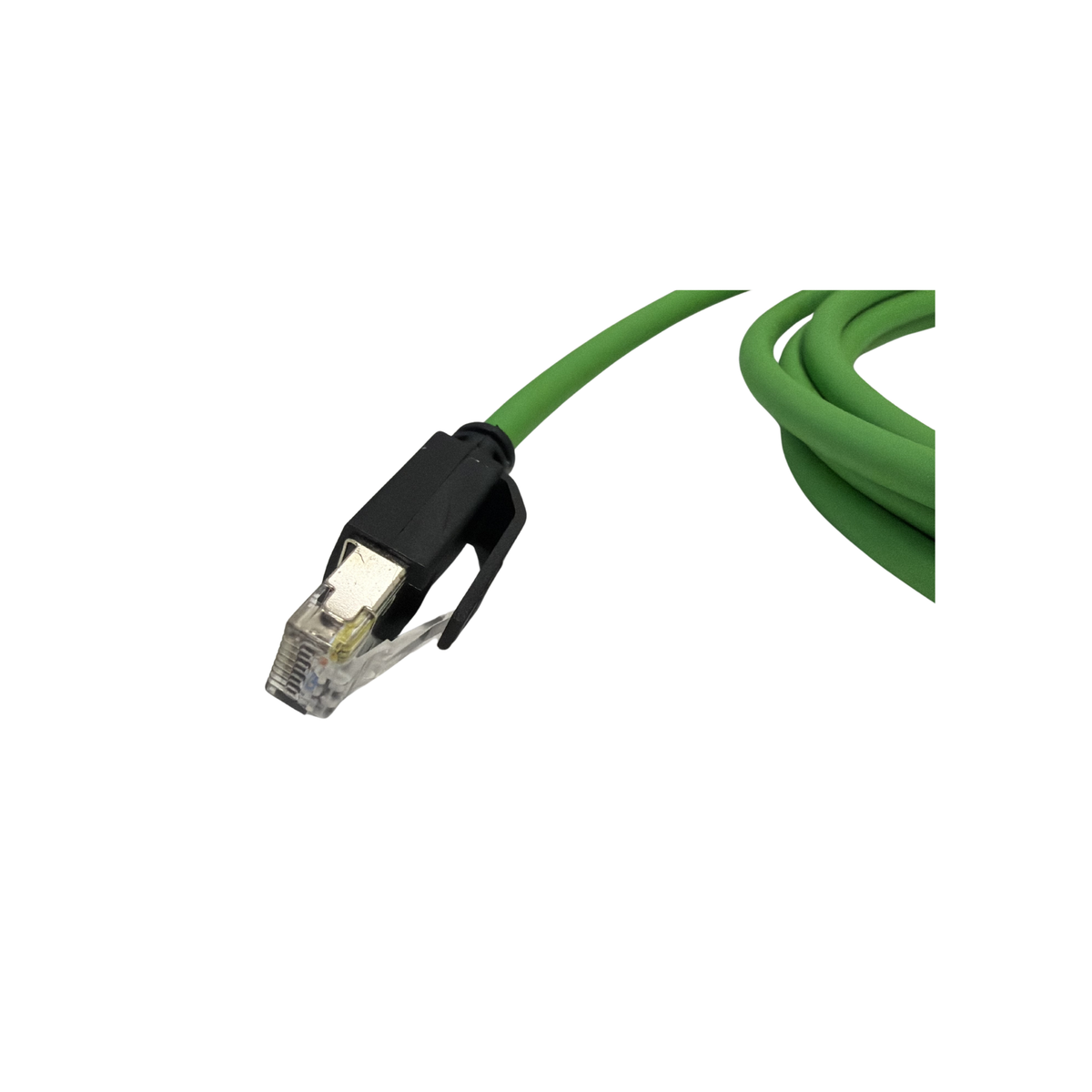

M12 double, 4-pin D-buckle male straight/male straight RJ45, green shield PUR high-flex energy chain cable length 3 meter
Fast Delivery
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guarantee Safe Checkout
M12 double, 4-pin D-buckle male straight/male straight RJ45, green shield PUR high-flex energy chain cable length 3 meter
M12 double, 4-pin D-buckle male straight/male straight RJ45, green shield PUR high-flex energy chain cable length 3 meter
SCAC-M12D-MS-4P-L-RJ45-4P-PUR-GN-SH
Order code: 944711-796-0300
| Number of wires x cross-sectional area of wires | 2x2x22AWG |
| Rated current | max.2A |
| LED indication | None |
| Cable type | Precast at both ends |
| Coding | D |
| Cable material: | PUR energy chain installation |
| Cable color | Green |
| Rated voltage | 60V AC/DC |
| Protection level | IP67/IP20 |
| Shielding | Yes |
| Craftsmanship | Puncture type |
| Superclass level | CAT.5e |
| Type | M12 male/RJ45 |
| cable outlet | straight out/straight out |
| Extreme number | 4 |
| Temperature range | -25-80℃ |
