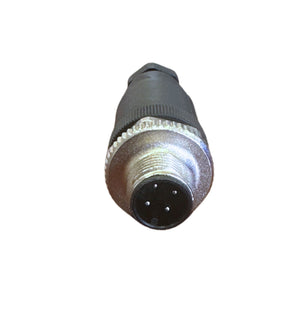

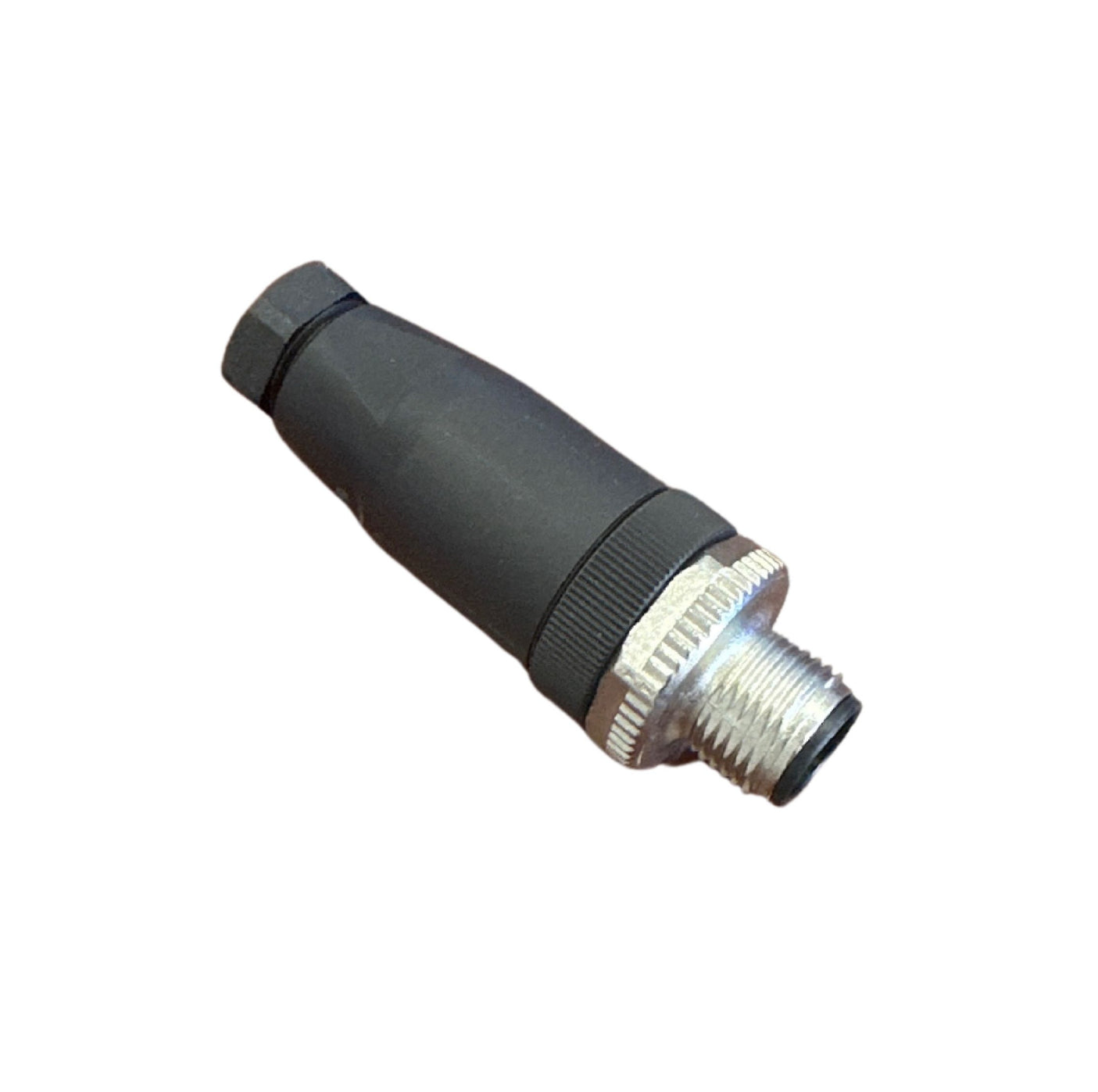

M12, A-buckle, 4-pin male, straight, PG7, screw crimp
SCAC-M12-MS-4P-PG7-LD-A-coded
Order code: 912701
M12, A-buckle, 4-pin male straight, PG7, screw crimp
| Rubber ring type | Single hole |
| Cable outlet diameter | 4-6mm |
| Current rating | max.4A |
| Ingress protection | IP67 jack pins fit tightened |
| Wiring | Screw crimping |
| type | Pins |
| Cable outlet | Straight out |
| shield | not |
| encode | A |
| Nut material | metal |
| Housing material | Flame retardant plastic |
| Crimping range | 0.75mm2 |
| Rated voltage | 250V AC/DC |
| Temperature range | -40-+85° C |
