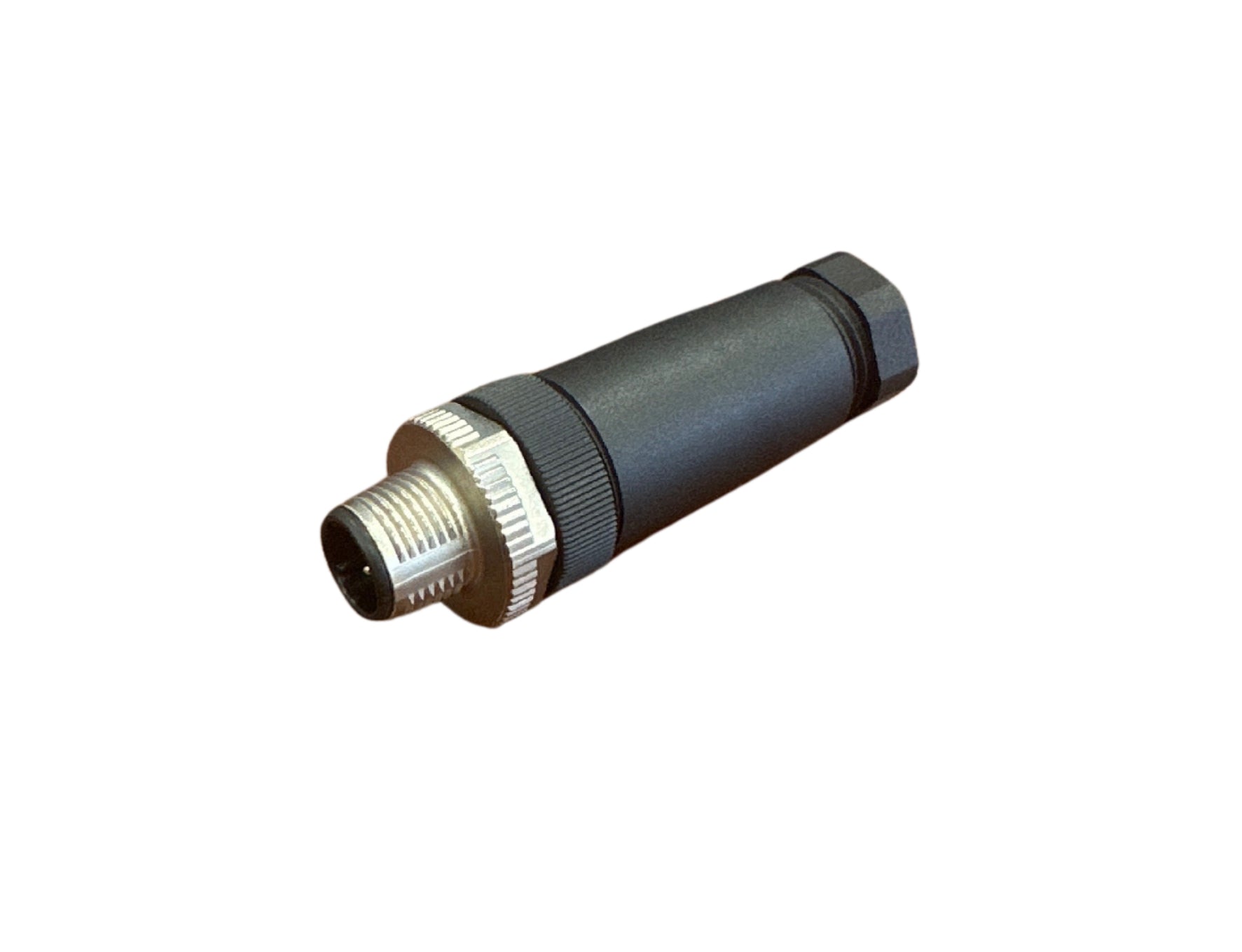

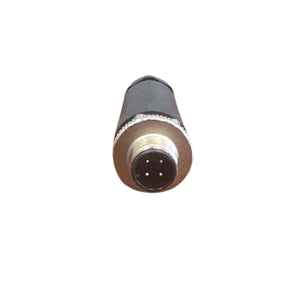

M12, D buckle 4-pin male, straight, PG9, screw crimping
SCAC-M12D-MS-4P-PG9-LD-D-coded
Order code: 914007
M12, D buckle 4-pin male, straight, PG9, screw crimping
| Number of pins | 4 |
| Rubber ring type | Single hole |
| Cable outlet diameter | 6-8mm |
| Current rating | max.4A |
| Ingress protection | IP67 jack pins fit tightened |
| Wiring | Screw crimping |
| type | Pins |
| Cable outlet | Straight out |
| shield | not |
| encode | D |
| Nut material | metal |
| Housing material | Flame retardant plastic |
| Crimping range | 0.75mm2 |
| Rated voltage | 250V AC/DC |
| Temperature range | -40-+85° C |
