SCAC-M12Y-MS-4P-2.0-M12-FR-PUR-GY-L2-B24
Order number: 940801-224-0200

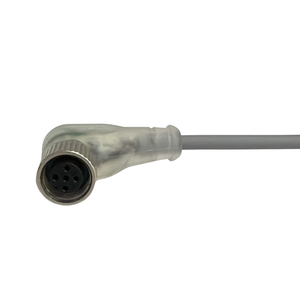

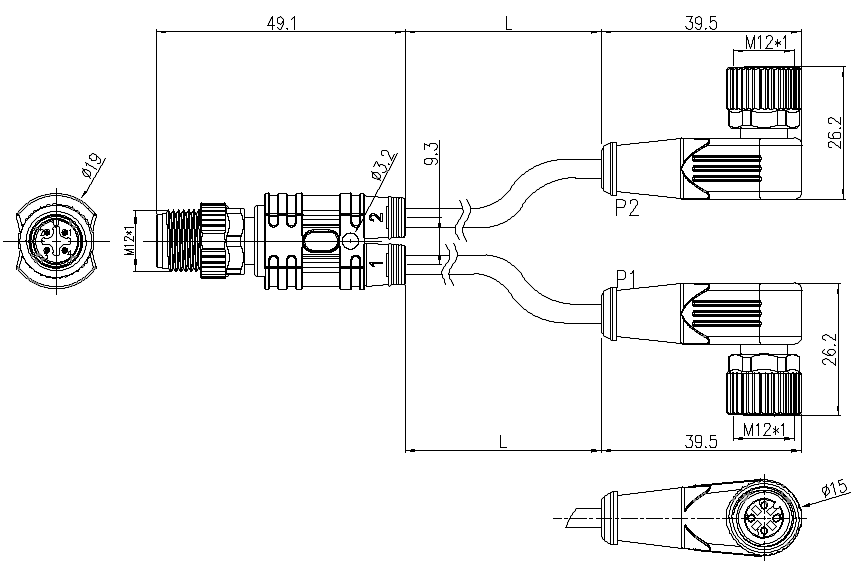

M12 Male Y Distributor - M12 2 Female 90° With Light
| Cable color | Gray |
| Maximum supply voltage | 24V AC/DC |
| Temperature range | -25...+80 °C |
| LED indicators | Yes |
| Interface type | M12 pin / 2× M12 jack |
| The extreme number | 4/4(2×LED) |
| Number of conductors × cross-sectional area | 4×0.34 mm² |
| Cable material | PUR |
| Maximum operating current | 4A |
| Protection Type (EN IEC 60529) | IP67 |
| Precast type | Double-ended precast |
| Cable outage | Straight out/90° |
| Coding | A |
