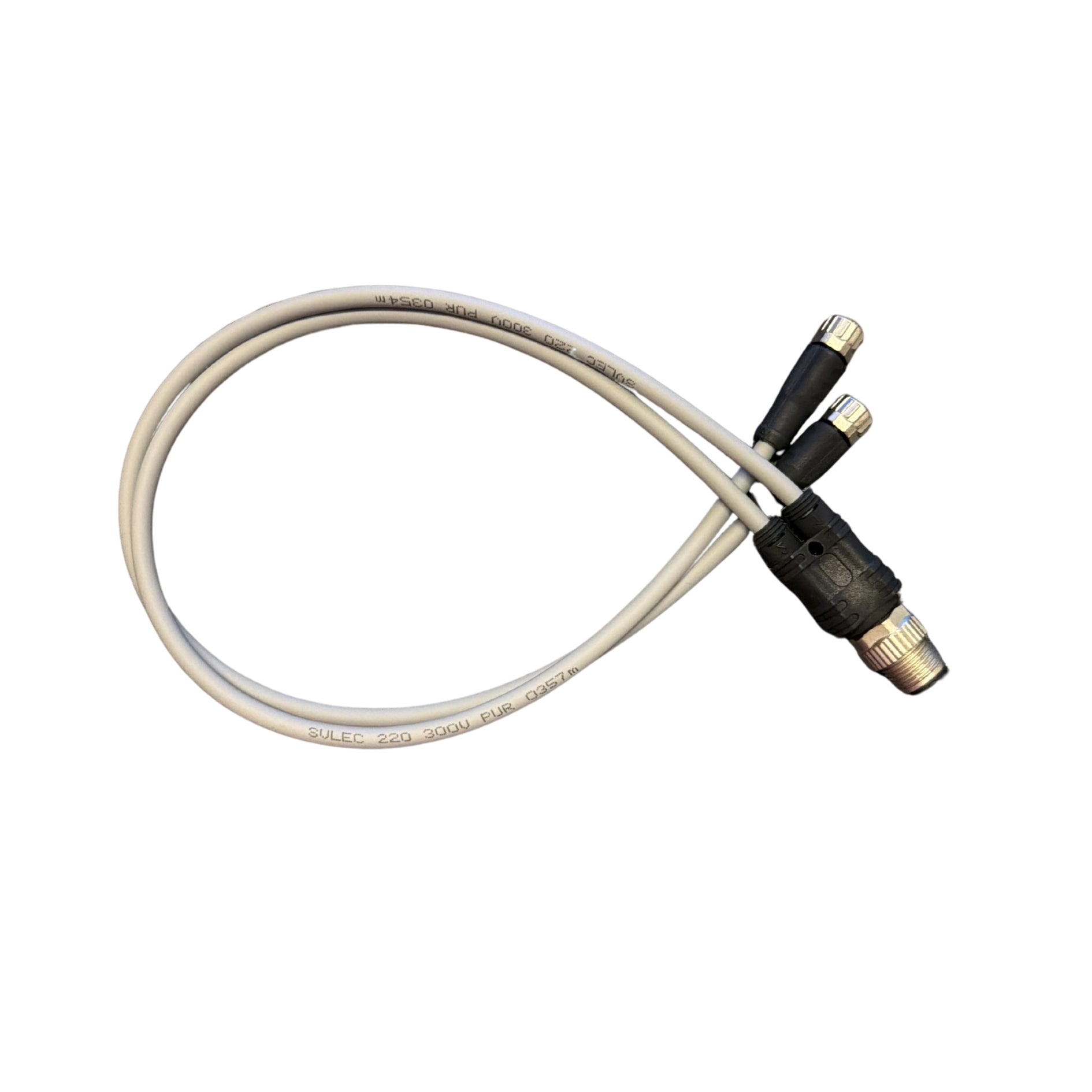

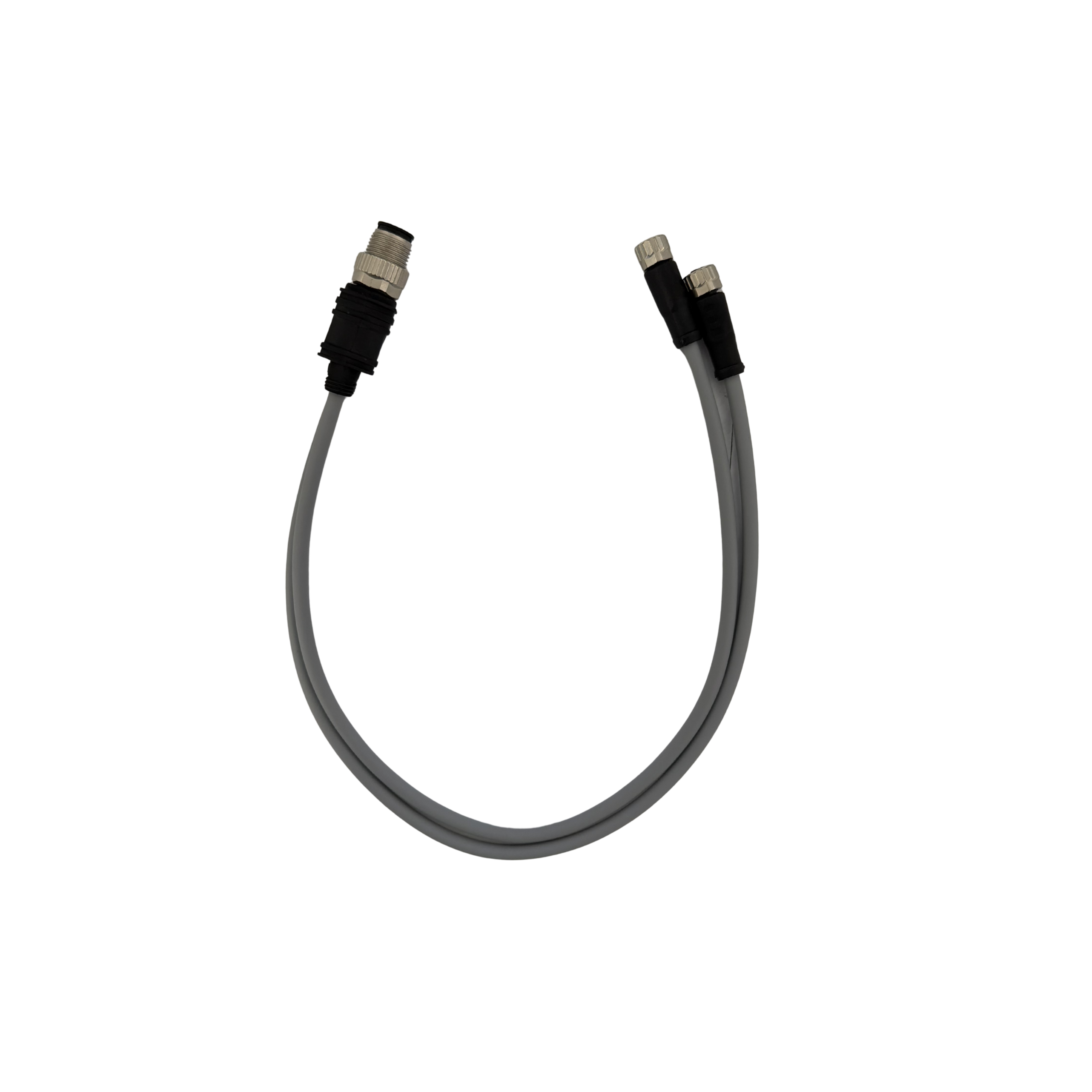

M12Y type, 4-pin male straight/female straight 3-pin 2M8, gray PUR cable L meter
Fast Delivery
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guarantee Safe Checkout
M12Y type, 4-pin male straight/female straight 3-pin 2M8, gray PUR cable L meter
M12Y type, 4-pin male straight/female straight 3-pin 2M8, gray PUR cable L meter
940821-220-0030
order number: 25121818
| Cable color | Grey |
| Maximum supply voltage | 50 V AC/DC |
| Temperature range | -25...+80 °C |
| LED indication | None |
| Interface type | M12 pin/2×M8 jack |
| Extreme number | 4/3 |
| Number of wires× cross-sectional area of wires | 3×0.25 mm² |
| Cable material: | PUR |
| Maximum operating current | 4A |
| Protection type (EN IEC 60529) | IP67 |
| Precast type | Precast at both ends |
| cable outlet | straight out/straight out |
| Coding | A |
