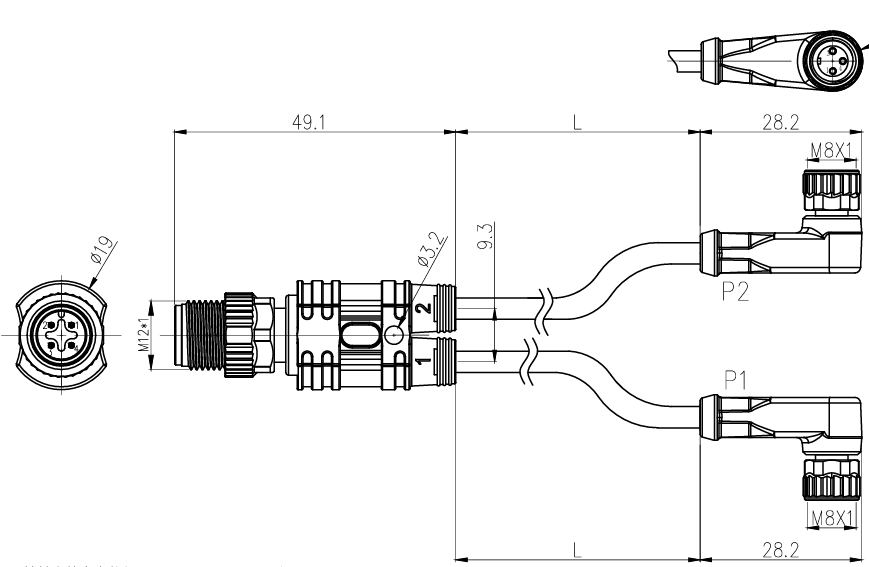

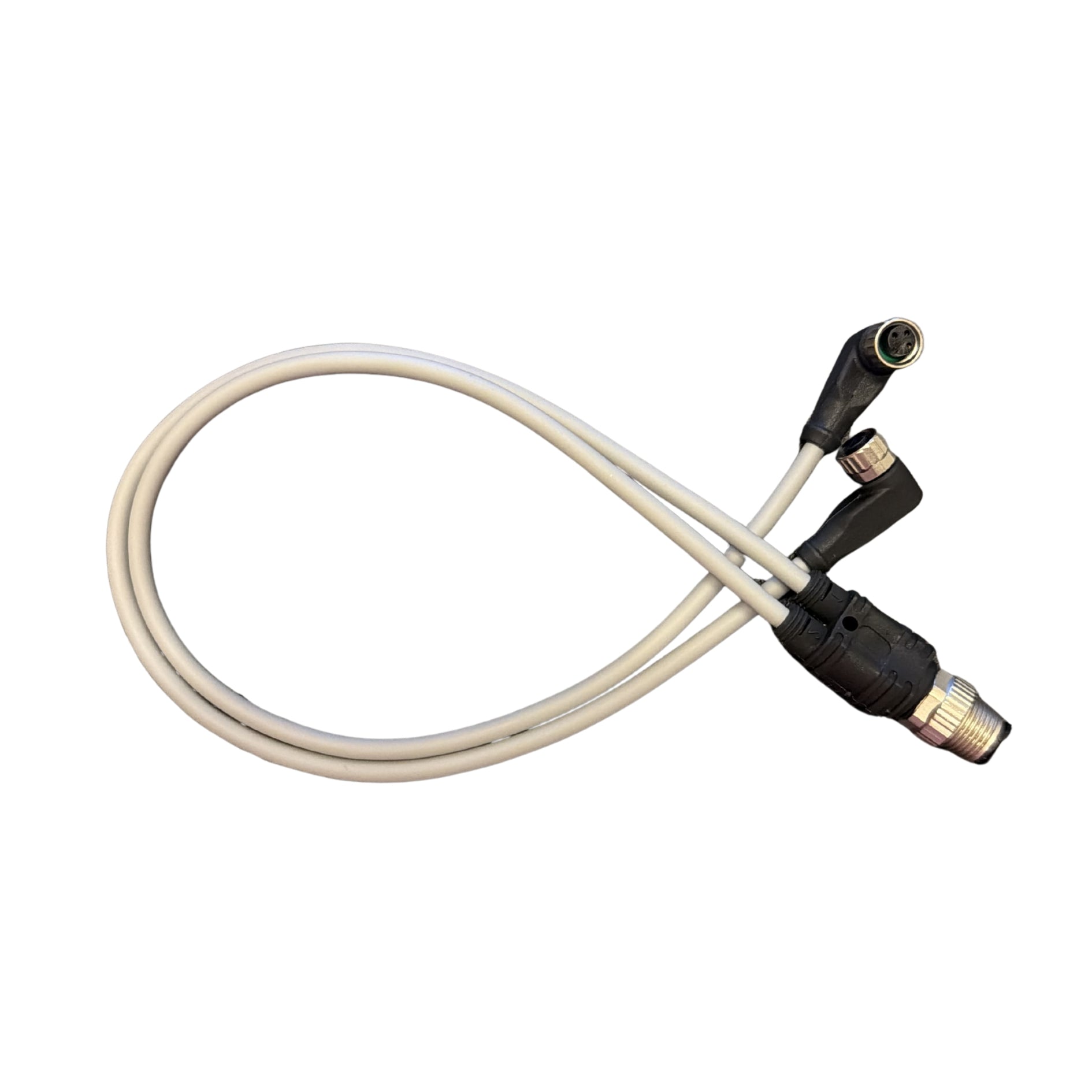

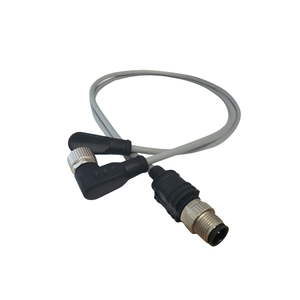

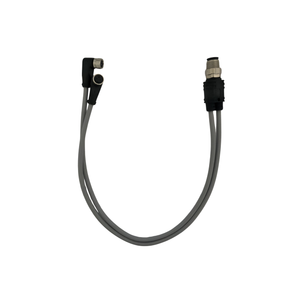

M12Y type, 4-pin male straight/female bend 3-needle 2M8
SCAC-M12Y-MS-4P-0.3-M8-FR-3P-PUR-GY
940841-220-0030
order number: 25121818
| Cable color | |
| Maximum supply voltage | 50 V AC/DC |
| Temperature range | -25...+80 °C |
| LED indication | None |

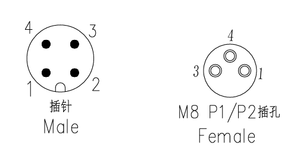

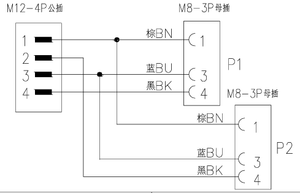

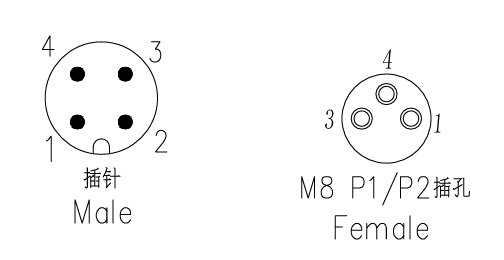

| Interface type | M12 pin/2×M8 jack |
| Extreme number | 4/3 |
| Number of wires× cross-sectional area of wires | 3×0.25 mm² |
| Cable material: | |
| Maximum operating current | 4A |
| Protection type (EN IEC 60529) | IP67 |
| Precast type | Precast at both ends |
| cable outlet | straight out / 90° |
| Coding | A |
