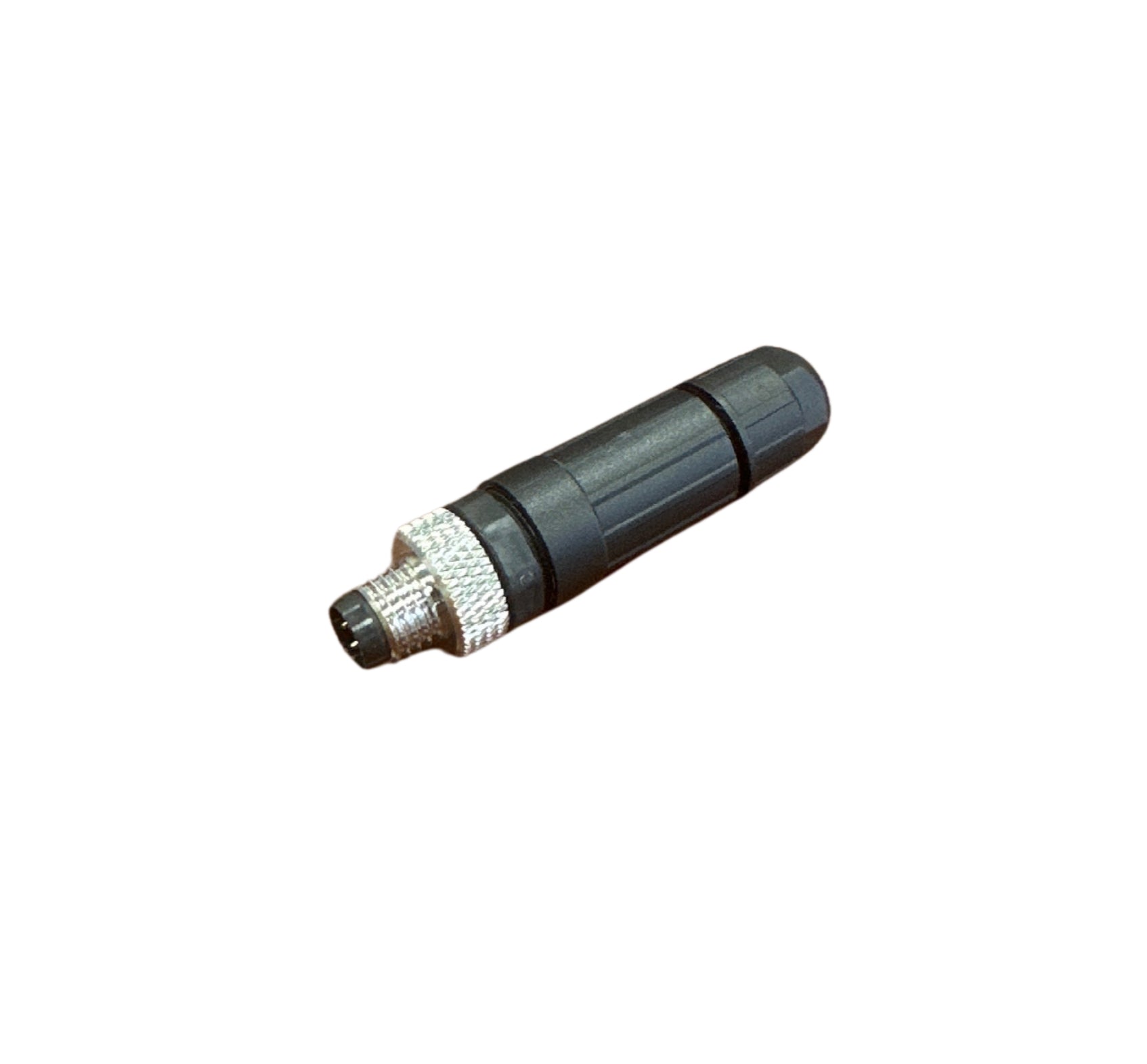

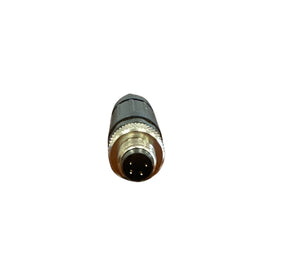

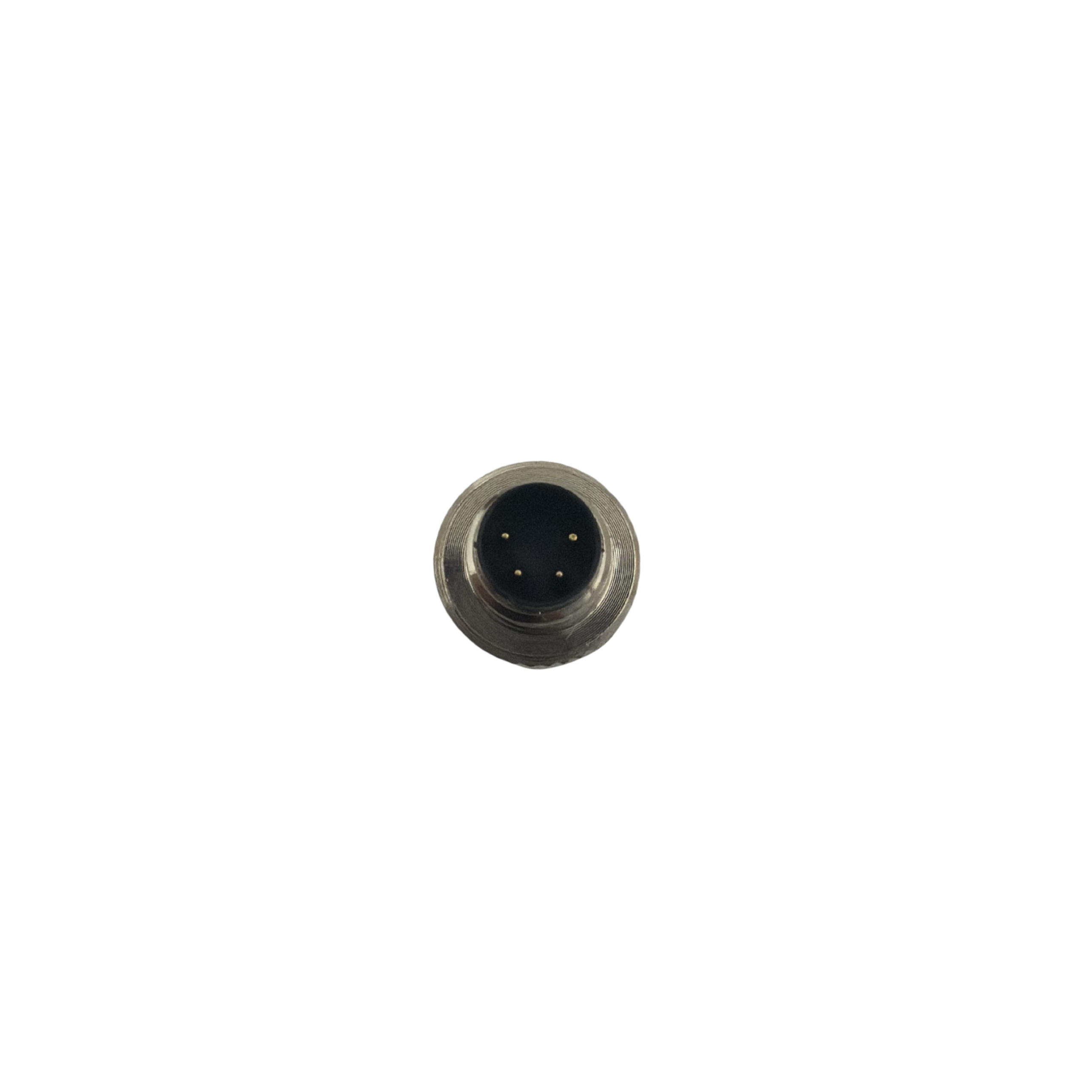

M8, 4-pin male, straight
SCAC-M8-MS-4P
Order code: 908611
M8, 4-pin male, straight
| Cable outlet | Straight out |
| encode | A |
| Crimping range | 0.14-0.5mm2 |
| Rated voltage | 30V AC/DC |
| Cable outlet diameter | 3.5-5.0 mm |
| Ingress protection | IP67 jack pins fit tightened |
| Temperature range | -40-+85° C |
| Wiring | Screw crimping |
| type | Pins |
| Number of poles | 4 |
| shield | not |
| Current rating | max.4A |
